Overview - Rear Lid Lower Trim Panel, TT Roadster

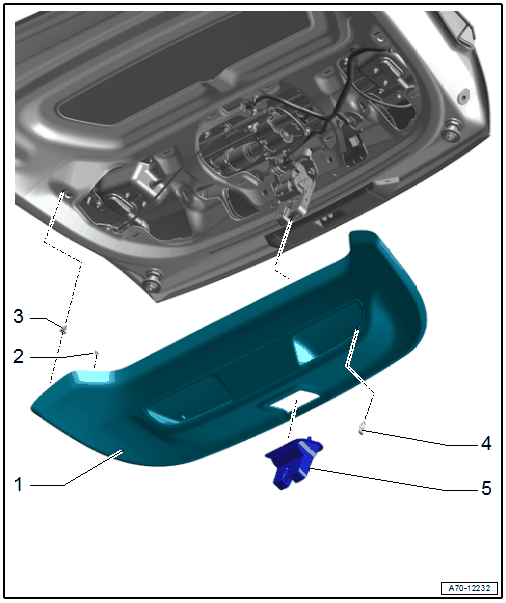

Fig 1: Exploded View Of Rear Lid Lower Trim Panel

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Trim
   • Removing and installing. Refer to REAR LID TRIM PANEL, REMOVING AND INSTALLING, TT ROADSTER .
   • Press on until it engages audibly
2. Rubber Buffer
   • Insert in the trim panel
   • Quantity: 10
3. Clip
   • Replace damaged or deformed clips
   • Remove any remaining clips in the rear lid mounting points using the Omega Clip Tool: T40280  . To install, insert into the trim panel.
   • Insert in the trim panel
   • Quantity: 12
4. Expanding Pin
   • Insert in the trim panel
   • Quantity: 2
5. Rear Lid Latch Trim Panel
   • Removing and installing. Refer to REAR LID TRIM PANEL, REMOVING AND INSTALLING, TT ROADSTER .
   • Press on until it engages audibly

Emergency Release, Market-Specific for North America

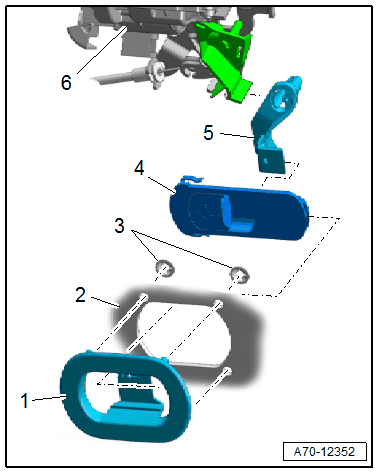

Fig 2: Emergency Release, Market-Specific for North America

Courtesy of AUDI OF AMERICA, LLC

1 -  Trim

2 -  Rear Lid Lower Trim Panel

3 -  Lock Washers - Quantity 4

4 -  Emergency Release Handle

5 -  Operating Lever

6 -  Rear Lid Latch
