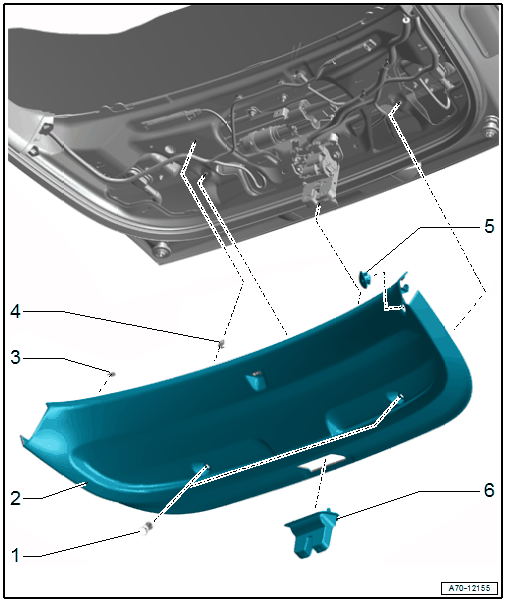

Overview - Rear Lid Lower Trim Panel, TT Coupe
WARNING: This page is about a different variant/trim than selected.
- Expanding Clip
- Remove using : T40172C with : T40172/2A
- Quantity: 2
- Rear Lid Lower Trim Panel
- Removing and installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, TT COUPE .
- Press on until it engages audibly
- Rubber Buffer
- Insert in the trim panel
- Quantity: 14
- Clip
- Replace damaged or deformed clips
- Remove any remaining clips in the rear lid mounting points using the : T40280 . To install, insert into the trim panel.
- Insert in the trim panel
- Quantity: 8
- Cover
- For the emergency release
- Clipped in the rear shelf trim
- Rear Lid Latch Trim Panel
- Removing and installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, TT COUPE .
- Press on until it engages audibly
