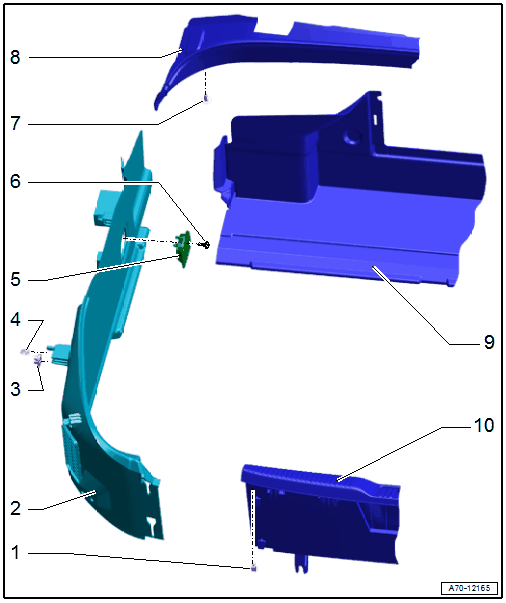

Overview - Luggage Compartment Trim Panel, TT Roadster
WARNING: This page is about a different variant/trim than selected.
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the : T40280 . To install, insert into the trim panel.
- Quantity: 4
- Luggage Compartment Side Trim Panel
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, TT ROADSTER .
- Press on until it engages audibly
- Stretch the rear lid seal lip
- Allocation. Refer to the Parts Information.
- Clip
- Insert in the trim panel
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any remaining clips from the mounting point using the : T40280 and use them to install the trim.
- Quantity: 3
- Tie Down
- Removing and installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Expanding Clip
- Remove using the : T40172A
- Quantity: 4
- Upper Luggage Compartment Trim Panel
- Removing and installing. Refer to UPPER LUGGAGE COMPARTMENT TRIM PANEL, REMOVING AND INSTALLING .
- Stretch the rear lid seal lip
- Front Luggage Compartment Trim Panel
- Removing and installing. Refer to FRONT LUGGAGE COMPARTMENT TRIM PANEL, REMOVING AND INSTALLING .
- Lock Carrier Trim
- Removing and installing. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
- Must engage in the pins and in the luggage compartment side trim panel.
- Press on until it engages audibly
- Stretch the rear lid seal lip
