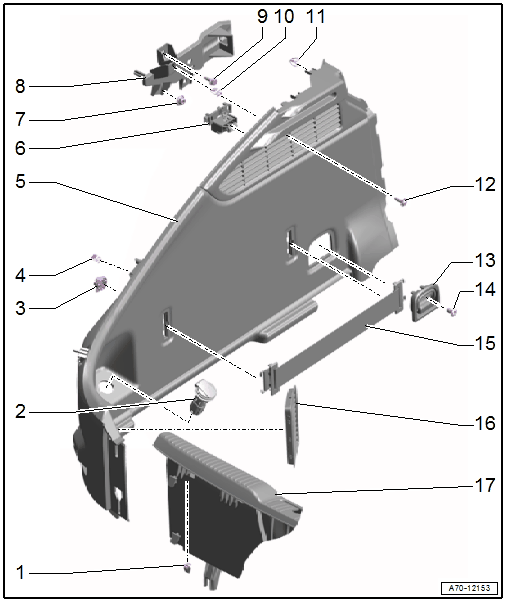

Overview - Luggage Compartment Side Trim Panel, TT Coupe
WARNING: This page is about a different variant/trim than selected.
- Clip
- Replace damaged or deformed clips
- Remove any remaining clips in the body mounting points using the : T40280 . To install, insert into the trim panel.
- Insert in the trim panel
- Quantity: 4
- Socket -U-
- Removing and installing. Refer to OVERVIEW - CIGARETTE LIGHTER, 12 V SOCKET .
- Clip
- Insert in the trim panel
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any remaining clips from the mounting point using the : T40280 and use them to install the trim.
- Quantity: 4
- Luggage Compartment Side Trim Panel
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, TT COUPE .
- Press on until it engages audibly
- Stretch the rear lid seal lip
- Left Luggage Compartment Lamp -W18- / Luggage Compartment Lamp -W35-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - LUGGAGE COMPARTMENT LAMPS .
- Nut
- 8 Nm
- Quantity: 2
- Bracket
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, TT COUPE .
- Bolt
- 8 Nm
- Expanding Nut
- Clip to the bracket
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Quantity: 2
- Bolt
- 1.5 Nm
- Tie Down
- Removing and installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Mounting Strap
- Allocation. Refer to the Parts Information.
- Air Grille
- Clip into the trim panel
- Lock Carrier Trim
- Removing and installing. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
- Must engage in the pins and in the luggage compartment side trim panel.
- Press on until it engages audibly
- Stretch the rear lid seal lip
