Luggage Compartment Side Trim Panel, Removing And Installing, TT Roadster: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the luggage compartment floor.

-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the tie down. Refer to TIE DOWN, REMOVING AND INSTALLING .

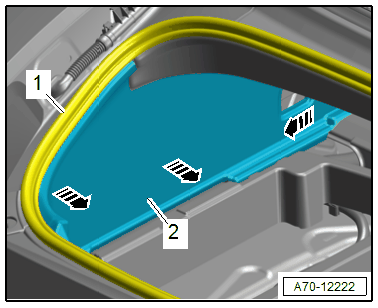

-- Remove the rear lid seal -1- near the luggage compartment side trim panel.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the luggage compartment side trim panel -2- starting at the back using the : 80-200 from the body in direction of -arrows-.

-- Disconnect the connector if equipped.

-- Remove the luggage compartment side trim panel toward the rear from the mount.
