Luggage Compartment Side Trim Panel, Removing And Installing, TT Coupe: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear shelf front.
-- Remove the luggage compartment floor.
-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the tie down. Refer to TIE DOWN, REMOVING AND INSTALLING .

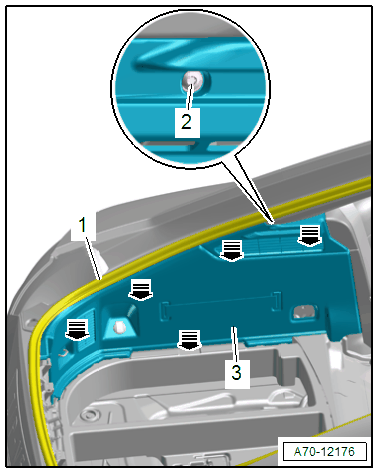

-- Remove the bolt -2-.
-- Remove the rear lid seal -1- near the luggage compartment side trim panel.
-- Unclip the luggage compartment side trim panel -3- starting at the back using the : 80-200 from the body in direction of -arrows-.
-- Pull the luggage compartment side trim panel slightly inward and disconnect the connector for the socket and luggage compartment lamp.
-- Remove the luggage compartment side trim panel toward the rear from the side trim panel.
