Lock Carrier Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the luggage compartment floor.

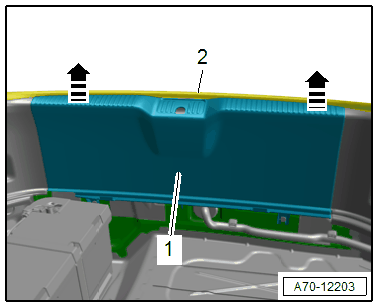

-- Remove the rear lid seal -2- near the lock carrier trim panel.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Unclip the lock carrier trim panel -1- vertically upward using the : 80-200
in direction of -arrows-.
