Side Defroster Vent, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

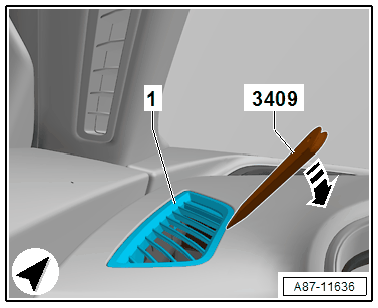

GWWA87-11636Courtesy of AUDI OF AMERICA, LLC

-- Remove the defroster vent -1- from the instrument panel in direction of -arrow- using a : 3409  .
