Instrument Cluster Trim, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

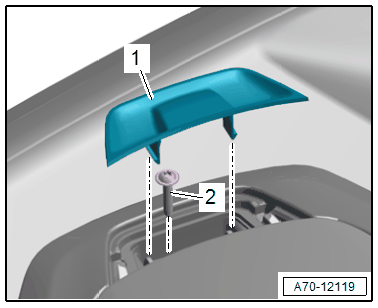

-- Unclip the cap -1- with the : 3409 .

Courtesy of AUDI OF AMERICA, LLC

-- If equipped: remove the bolt -2- underneath for the instrument panel lid.

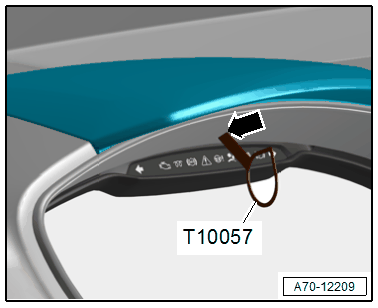

-- To release the clip push the Radio Removal Tool : T10057 in the opening -arrow- and press.

Courtesy of AUDI OF AMERICA, LLC

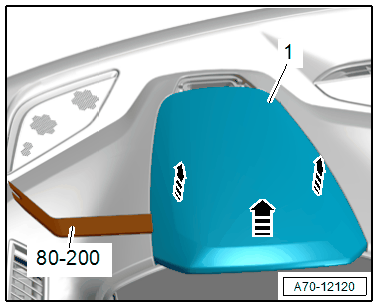

-- Remove the instrument panel lid -1- from the instrument panel in direction of -arrows- using the : 80-200 .

Courtesy of AUDI OF AMERICA, LLC

-- To remove the instrument panel reinforcement -2- remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -item 1-.

-- Unclip the upper steering column trim panel from the instrument panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

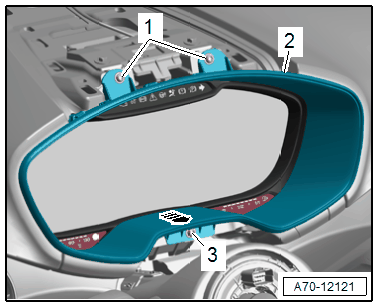

-- Remove the bolts -1 and 3-.

-- Pull the instrument cluster trim -2- toward the rear in direction of -arrow- and remove.
