Trim Molding, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

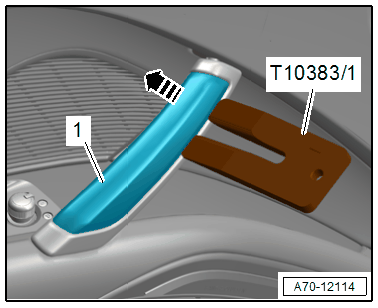

-- Pry up the trim molding -1- with the : T10383/1  along the pull handle gap in direction of -arrow-.

GWWA70-12114Courtesy of AUDI OF AMERICA, LLC

-- Remove the trim molding from the pull handle.
