Remove the Midrange Speaker Trim

WARNING: This page is about a different variant/trim than selected.

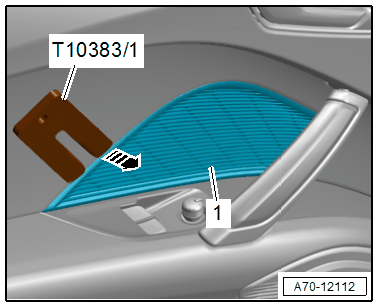

GWWA70-12112Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the speaker trim -1- along the door trim seam in direction of -arrow- using the : T10383/1  and remove it.
