Front Pull Handle, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the insulation mat.
-- Driver side: remove the mirror adjusting switch. Refer to MIRROR ADJUSTING SWITCH -E43- /FOLDING MIRROR ADJUSTMENT SWITCH -E168-, REMOVING AND INSTALLING .

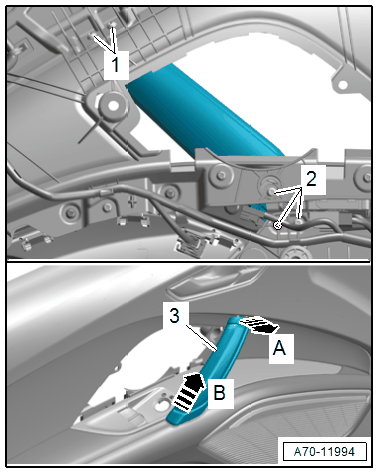

-- Remove the bolts -1 and 2- from the rear of the door trim.
-- Loosen the upper pull handle -3- from the door trim panel in direction of -arrow A- and remove below from the door trim panel in direction of -arrow B-.
