Front Armrest, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the insulation mat.

-- Equipped on some models: disconnect the connector for the ambient lighting lamp.

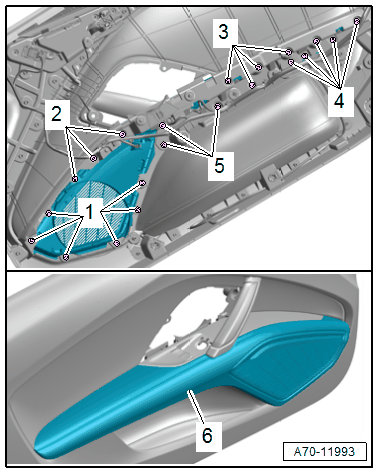

-- Remove the bolts -1 through 5- on the rear of the door trim panel.

-- Remove the armrest -6- from the door trim panel.
