Upper Steering Column Trim Panel, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

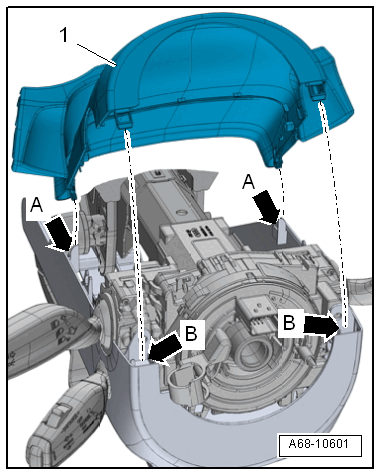

GWWA68-10601Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

-- Engage the upper steering column trim -1- in the lower steering column trim -A arrows-.

-- Ensure the steering column trim panel pins engage in the opening at the upper steering column trim panel retaining tab -B arrows-.
