Overview - Steering Column Trim Panel

WARNING: This page is about a different variant/trim than selected.

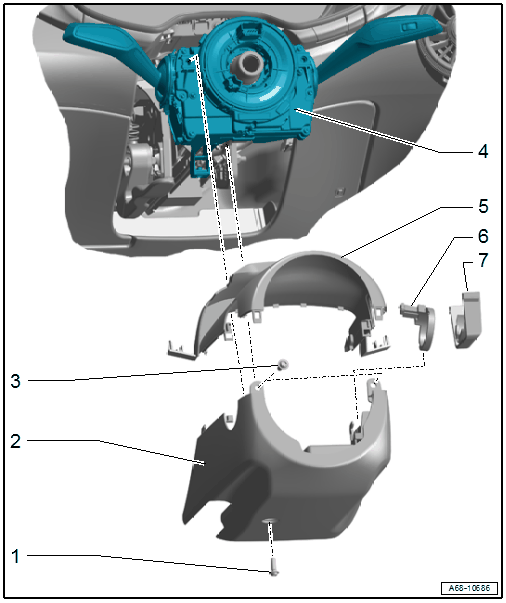

Fig 1: Exploded View Of Steering Column Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2.5 Nm
Lower Steering Column Trim Panel
- Removing and installing. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- Quantity: 2
Steering Column Switch Module
- Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
Upper Steering Column Trim Panel
- Removing and installing. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly.
Anti-Theft Immobilizer Reader Coil -D2-
- Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
Mount
- For the reader coil
- Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
