Overview - Driver Side Instrument Panel Cover

WARNING: This page is about a different variant/trim than selected.

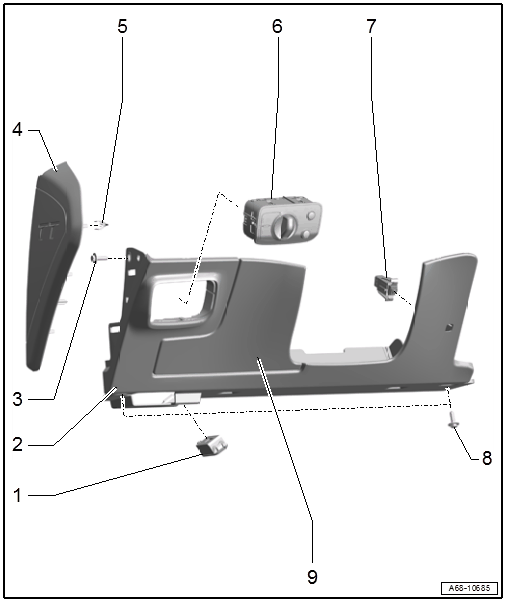

Fig 1: Exploded View Of Driver Side Instrument Panel Cover

Courtesy of AUDI OF AMERICA, LLC

Left Footwell Lamp -W9-
- Equipment levels
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL LAMPS .
Driver Side Instrument Panel Cover
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Side Cover
- For the instrument panel
- Removing and installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
Clip
- Replace damaged or deformed clips
- For the side trim
- Insert in the cover
- Quantity: 5
Light Switch -E1-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
Instrument Panel Temperature Sensor -G56-
- Equipment levels
- Removing and installing. Refer to OVERVIEW - COMPONENTS IN FRONT VEHICLE INTERIOR .
Bolt
- 3 Nm
- Quantity: 2
Cover
- For the Fuse Panel C -SC-
- Clipped in to the instrument panel cover
