Glove Compartment Handle Lock Cylinder, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the glove compartment handle. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .

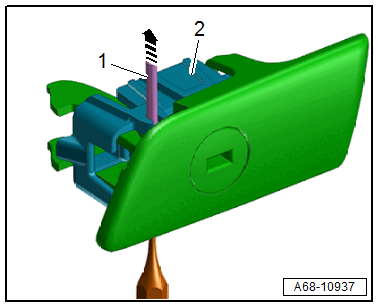

-- Drive out the axle -1- from the locating bore with a punch in the direction of -arrow-.
-- Remove the cover -2-.
CAUTION:
Risk of destroying the lock cylinder.
- The lock cylinder may only be removed and installed with the key properly inserted to prevent the tumblers and pressure springs from falling out.

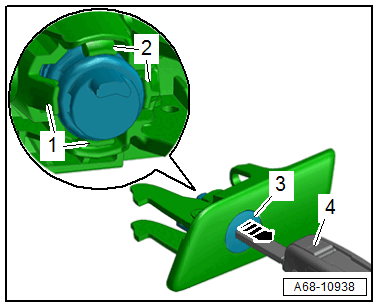

-- Insert the key -4- into the lock cylinder.
-- Carefully release the catches -1 and 2- one after the other using a small screwdriver and remove the lock cylinder -3- at the same time -arrow-.
