Glove Compartment Handle Lock Cylinder, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.

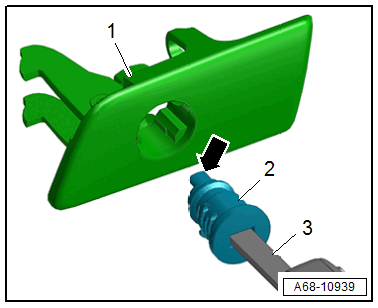

-- Insert the key -3- into the new lock cylinder -2-.
-- Remove the protective cap from the new lock cylinder.
-- Insert the lock cylinder into the glove compartment handle -1- until it engages. Pay attention to the installation position of the pin.
- The pin -arrow- on the lock cylinder points upward.
Further installation is the reverse order of removal.
