Driver Side Instrument Panel Cover, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the driver side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
-- Equipped on some models: Remove the footwell lamp. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL LAMPS .

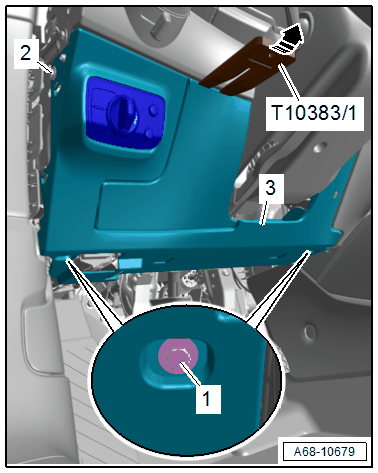

-- Remove the lower bolts -1-.
-- Remove the side screw -2-.
-- Unclip the driver side instrument panel cover -3- from the instrument cluster using the : T10383/1 -arrow-.
-- Equipped on some models: Disconnect the connector on the Instrument Panel Temperature Sensor -G56-.
-- Disconnect the connector from the light switch.
