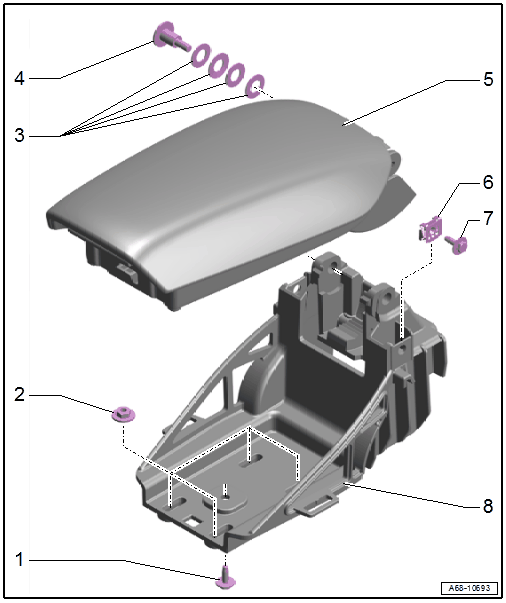

Overview - Front Center Armrest
WARNING: This page is about a different variant/trim than selected.
NOTE:
To repair the center armrest, there is a repair kit available. Refer to the Parts Information.
- Bolt
- 3 Nm
- Nut
- Tightening specification. Refer to -item ) Nut.
- Quantity: 4
- Washers
- Repair set. Refer to the Parts Information.
- Bolt
- 7.5 Nm
- Quantity: 1 on the left and right side
- Repair set. Refer to the Parts Information.
- Front Center Armrest
- Not available separately.
- Removing and installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .
- Metal Nut
- Quantity: 1 on the left and right side
- Insert in the center armrest
- Bolt
- 3 Nm
- Quantity: 1 on the left and right side
- Center Armrest Mount
- Not available separately.
- Removing and installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .
