Front Center Armrest, Removing And Installing: Removing

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

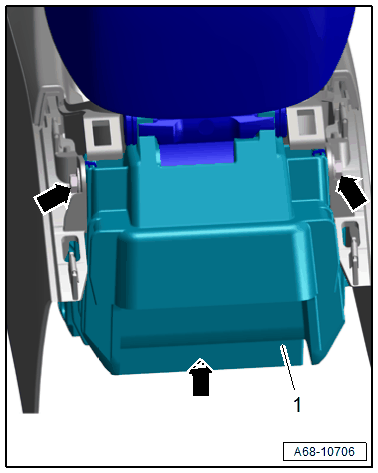

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Flip up the center armrest.

-- Remove the center armrest -1- downward from the center console.
