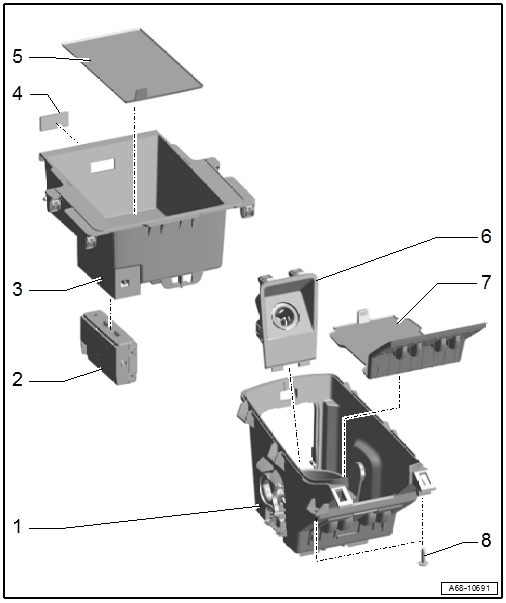

Overview - Center Console, Storage Compartment
WARNING: This page is about a different variant/trim than selected.
- Rear Storage Compartment
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to CENTER CONSOLE REAR STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- External Audio Source Connection -R199-
- Equipment levels
- Front Storage Compartment
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to CENTER CONSOLE FRONT STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Insert in the installation opening an press on all the way.
- Trim/External Audio Source Connection -R199-
- Liner Mat
- Mount
- For the socket
- Removing and installing. Refer to OVERVIEW - CIGARETTE LIGHTER, 12 V SOCKET .
- Engage in the storage compartment and press on it until it engages audibly
- Liner Mat
- Bolt
- 1.4 Nm
- Quantity: 6
