Center Console Rear Trim, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Move the front seats all the way forward.

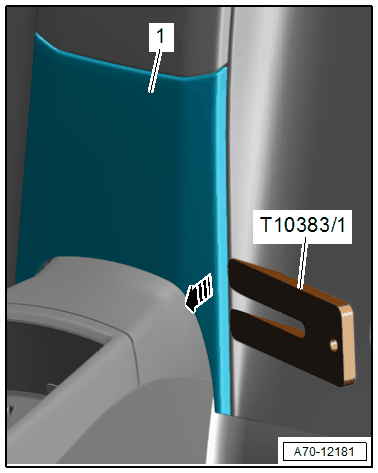

-- TT Roadster: Unclip the center rear panel trim panel -1- with the : T10383/1 in direction of -arrow- and remove.
-- Push the center armrest cushion forward.

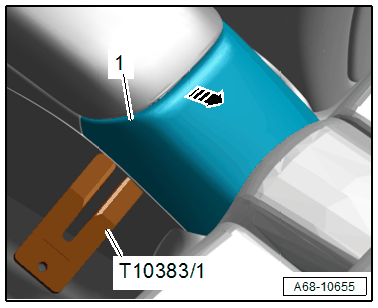

-- Unclip the trim -1- with the : T10383/1 starting at the top from the center console.
-- Remove the trim from the center console in direction of -arrow-.
NOTE:
The trim for the TT Coupe is illustrated.
