Center Console Cover, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

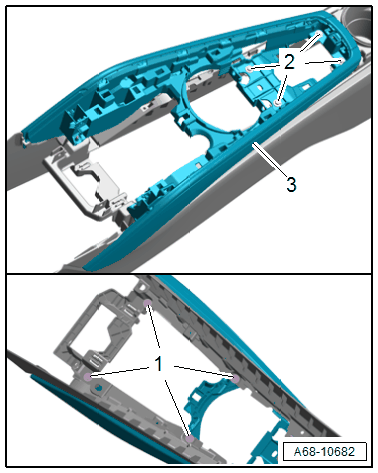

Upper Cover:

-- Remove the center console bolts -1- at the bottom.

-- Remove the bolts -2-, disengage the cover -3- on the center console and remove.

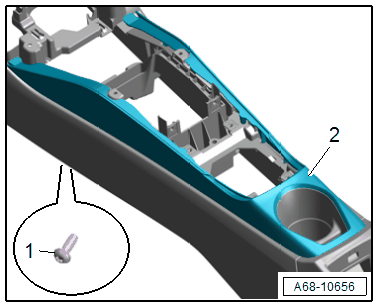

Lower Cover:

-- Remove the center console bolts -1- at the bottom.

-- Loosen the cover -2- from the center console and remove.
