Center Console Bracket, Removing And Installing: Removing

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

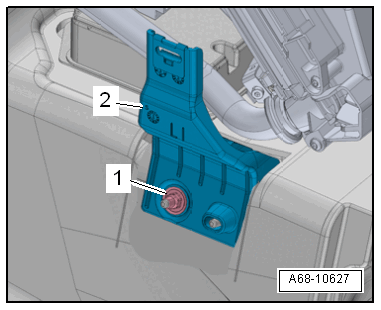

Center Console Front Bracket:

Courtesy of AUDI OF AMERICA, LLC

-- Push aside the carpet in the area of the threaded connection and remove the nut -1-.

-- Remove the center console bracket -2-.

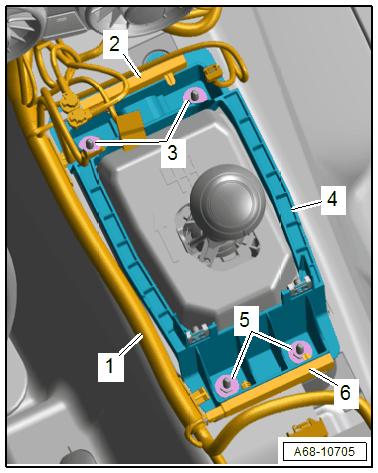

Center Console Securing Bracket:

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the antennas -2 and 6- from the securing bracket.

-- If equipped: disengage the seat belt microphone control module from the bracket.

-- Unclip the wiring harness -1- from the securing bracket.

-- Remove the nuts -3 and 5- and remove the securing bracket -4-.

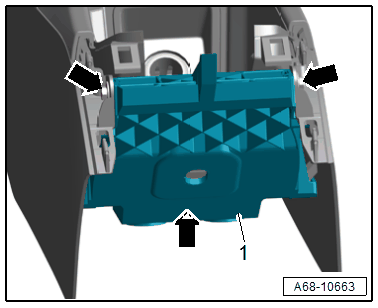

Rear Center Console Bracket:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the bracket -1-.
