Rear Axle Toe, Adjusting

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Procedure

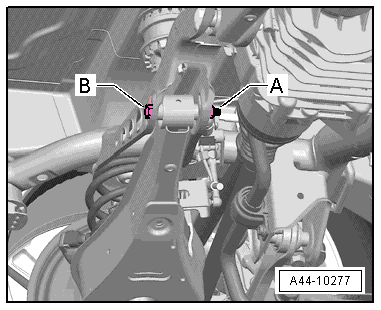

-- Remove the nut -A- on the lower control arm threaded connection from the subframe and loosely install a new nut.

Courtesy of AUDI OF AMERICA, LLC

-- Adjust toe by turning eccentric bolt -B-.

NOTE:

The maximum adjustment range is 90° to left or right of center position.

-- Tighten the nut -A-.

-- After the nut -A- is tightened, check the toe value once more. Refer to AXLE ALIGNMENT SPECIFIED VALUES .

Tightening Specifications
