Brake Carrier, Removing And Installing, Rear Brakes: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING, REAR BRAKES .

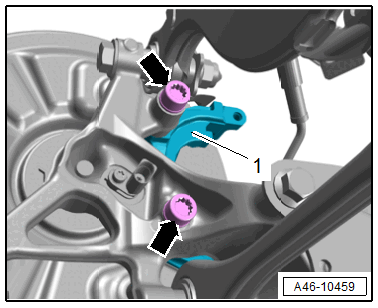

-- Remove the bolts -arrows- using the :T10035 and remove the brake carrier -1-.
NOTE:
The installation position illustrated is for a FWD vehicle.
