Left/Right Parking Brake Motor -V282- / -V283-, Removing And Installing: Installing
Clean bolts before reusing.
Replace damaged bolts.
Always replace self-locking bolts.
Install in reverse order of removal and note the following:
Replace the gasket after removal.
- The ring groove for the gasket and the parking brake motor contact surface must not be damaged.
-- Clean the parking brake motor ring groove and contact surface.
-- Lightly coat the new seal with Lithium Grease :G 052 150 A2 and install.

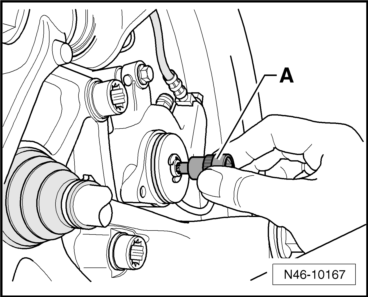

-- Push back the driveshaft a little using a TORX® insert E11 -A- until the parking brake motor can be positioned correctly.
Do not remove the gasket when assembling the parking brake motor.
-- Rotate the parking brake motor until the bolt hole and threads are aligned.
- The parking brake motor must be flush with the brake caliper. Under no circumstances may it be pulled against the brake caliper with bolts.
-- Tighten the bolts -arrows-.
-- Connect the connector -1-.
-- Connect the Vehicle Diagnostic Tester to the data link connector on the vehicle with the ignition switched off.
-- Switch the ignition on.
-- After entering the VIN, select Guided Functions .
-- Perform a basic setting.
| Suspension/brake system | |||||
| 01 OBD-capable systems | |||||
| 03 ABS Control Module J104 integrated parking brake | |||||
| 03 Electric parking brake functions | |||||
| 03 46 Basic setting | |||||
-- Continue to follow the instructions in the Vehicle Diagnostic Tester display.
Risk of accident!
- Make sure the brakes are working correctly before driving the vehicle for the first time.
