Shield, Removing And Installing, 1LK/1LH TTS: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the corresponding brake rotor. Refer to BRAKE ROTOR, REMOVING AND INSTALLING, 1LK/1LH TTS .

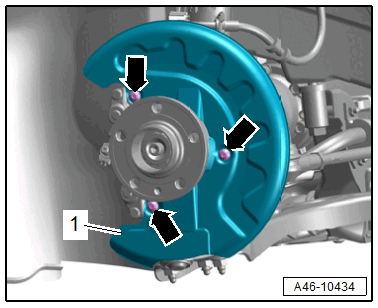

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the brake shield -1-.
