Brake Pad Retaining Plate

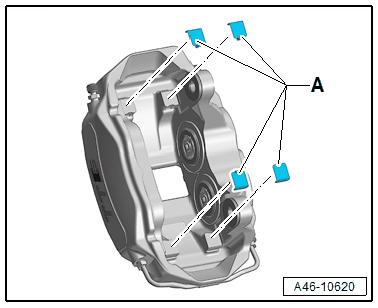

Quantity 4 Retaining Plates in the Inner Brake Caliper:
All four retaining plates must be installed as shown on the contact surfaces for the brake pads.
Note the correct installation position of the retaining plates.
The narrow small tab points to the inside of the brake caliper.
Check for the correct installation position after each removal and before installing the brake pads.

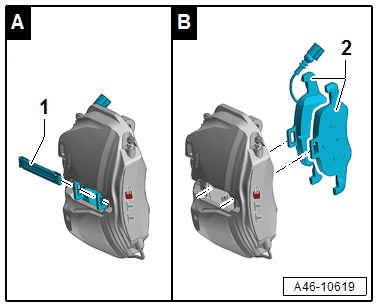

Retaining Plate for the Brake Pads on the Brake Caliper Rear Side:
The retaining plate suspension is located underneath and engages in the brake caliper mount.
The retaining plate must be pushed through the mounts on both brake pads.
The retaining plate must lock audibly and noticeably in the mount in the brake caliper.
Make sure the installation position is correct after every removal/installation of the brake caliper and after the installation of the brake pads.
