Brake Carrier, Removing And Installing, Pr 1JL, 1ZD: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING, PR 1JL, 1ZD .

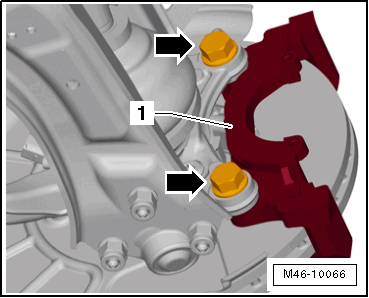

-- Remove the bolts -arrows- and remove the brake carrier -1-.
