Brake Pedal, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the mounting bracket. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING .

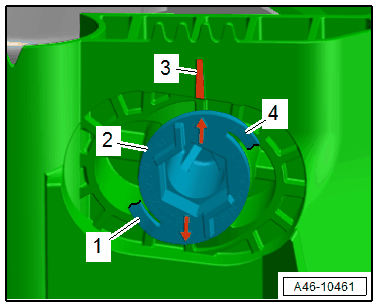

-- Turn the mounting pin -2- clockwise using the 14 mm hex socket wrench until the arrow marking aligns with the locating tab -3- on the mounting bracket.
NOTE:
While doing so, the tabs -1 and 4- break.
-- Remove the mounting pin and remove the brake pedal from the mounting bracket.
-- Remove the clip.
