Brake Pedal, Disconnecting From Brake Booster
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Release Tool :T10159B
Disconnecting

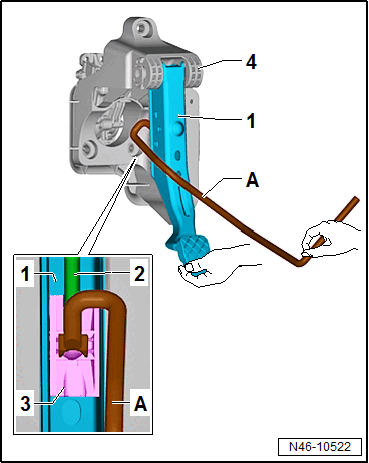

-- Press and hold the brake pedal -1- in the direction of the brake booster.
-- Insert the :T10159B -A- and pull in the direction of the driver seat. While doing so, counterhold at the brake pedal so that it does not move toward the rear. While doing so, the mount retaining tabs -3- will be pushed out of the pushrod ball head -2-.
-- Pull the :T10159B and brake pedal together toward the driver seat. As a result, the brake pedal is removed from the pushrod ball head.
4 - Mounting Bracket
