Vacuum Pump, Removing And Installing, 4-Cylinder TFSI Engines: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

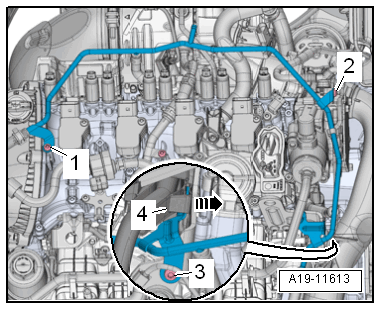

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the coolant line.

-- Remove the bolts -1, 2 and 3- and carefully push the coolant line slightly to the side.

NOTE:

Ignore -4 and arrow-.

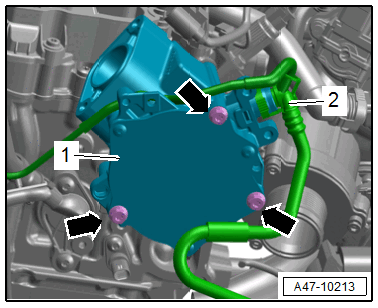

-- Remove the vacuum hose -2- from the vacuum pump -1- by pressing the release buttons on both sides.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the vacuum pump.
