Brake Caliper Piston, Removing And Installing: Installing

-- Clean the surfaces on the pistons and seal only with mineral spirits and then dry.

-- Thinly coat the brake caliper pistons and seals with lithium grease before installing. Refer to the Parts Information.

-- Insert the seal into the brake caliper.

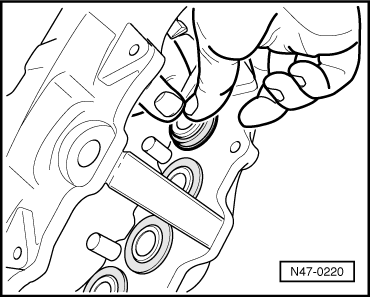

Fig 1: Inserting Oil Seal In Brake Caliper Housing

Courtesy of AUDI OF AMERICA, LLC

-- Place the protective cap on the brake caliper piston.

Fig 2: Identifying Protective Cap On Piston

Courtesy of AUDI OF AMERICA, LLC

-- Without tilting it, push the brake caliper pistons using constant pressure.

Fig 3: Pushing Piston Into Brake Caliper Housing

Courtesy of AUDI OF AMERICA, LLC

-- Press the protective cap into the groove on the brake caliper.

• The protective cap must fit tightly in the groove. If necessary, push down on it slightly with the -T10145-.

-- Repeat the work procedure on the next brake caliper piston.
