Overview - Rear Axle Speed Sensor, Fwd Vehicles

WARNING: This page is about a different variant/trim than selected.

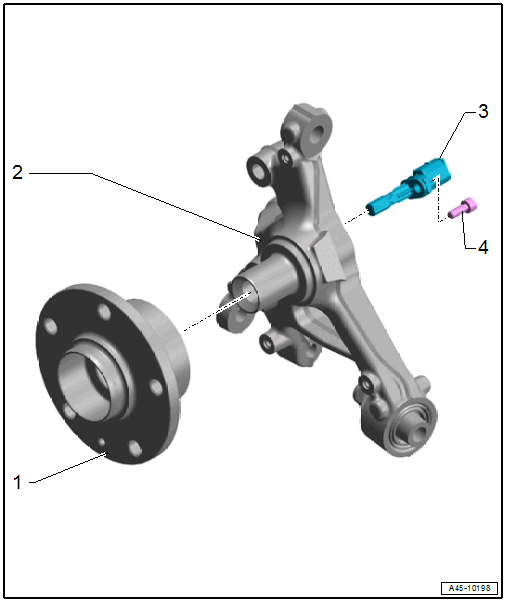

Fig 1: Exploded View Of Rear Axle Speed Sensor, Vehicles With FWD

Courtesy of AUDI OF AMERICA, LLC

Wheel Hub with Wheel Bearing
- The sensor ring for the ABS is located on the wheel bearing
- Refer to SENSOR RING FOR ABS SPEED SENSOR, CHECKING
- Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
Wheel Bearing Housing
- Clean the inner surface of the hole before inserting the speed sensor.
Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44- /Left Rear ABS Wheel Speed Sensor -G46-
- Removing and installing. Refer to RIGHT/LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, REMOVING AND INSTALLING
- Coat the speed sensor all around with Grease: G 000 650 before inserting.
Bolt
- 8 Nm
