Overview - Component Location, Abs /Esp
WARNING: This page is about a different variant/trim than selected.

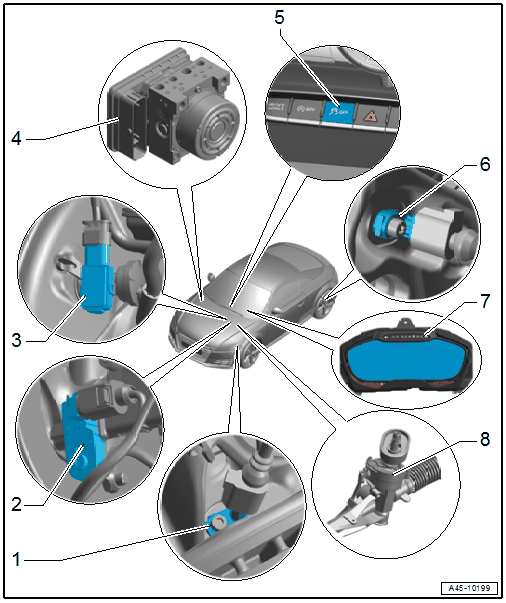

- Front Speed Sensor
- Right Front ABS Wheel Speed Sensor -G45- /Left Front ABS Wheel Speed Sensor -G47-
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Overview. Refer to OVERVIEW - FRONT AXLE SPEED SENSOR
- Brake Lamp Switch -F- /Brake Pedal Switch -F63-
- Removing and installing. Refer to BRAKE LAMP SWITCH, REMOVING AND INSTALLING
- Vacuum Sensor -G608-
- Depending on vehicle equipment
- Removing and installing. Refer to Vacuum Sensor -G608-, REMOVING AND INSTALLING
- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- Component location: in the right rear engine compartment
- ABS Hydraulic Unit -N55- with ABS Hydraulic Pump -V64-
- The hydraulic pump cannot be replaced separately.
- Components in the ABS Control Module -J104- :
- Transverse Acceleration Sensor -G200-
- Rotation Rate Sensor -G202-
- Brake Pressure Sensor 1 -G201-
- Longitudinal Acceleration Sensor -G251-
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Overview. Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT NOTE:
If the ABS Control Module -J104- is faulty, the control module can be replaced separately.
If the ABS Hydraulic Pump -V64- faulty the ABS Hydraulic Unit -N55- must be replaced together with the ABS Control Module -J104-.
The ABS Hydraulic Pump -V64- cannot be replaced separately.
- Refer to CONTROL MODULE, SEPARATING FROM HYDRAULIC UNIT
- ASR/ESP Button -E256-
- Component location: inside the center console
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
- Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44- /Left Rear ABS Wheel Speed Sensor -G46-
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Overview. Refer to OVERVIEW - REAR AXLE SPEED SENSOR
- Instrument Cluster
- With ASR/ESP Indicator Lamp -K155-
- The indicator lamp cannot be replaced separately.
- Steering Gear
- With Steering Angle Sensor -G85-
- The steering angle sensor cannot be replaced separately
