Left/Right Rear Level Control System Sensor -G76- / -G77-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

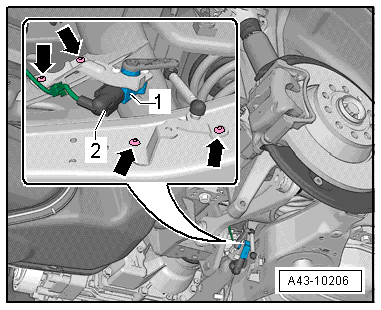

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the rear level control system sensor -1-.

NOTE:

The installation position illustrated is for a FWD vehicle.
