Electronic Damping Control Module -J250-, REMOVING AND INSTALLING: Removing

-- Move the right front seat all the way forward and up.

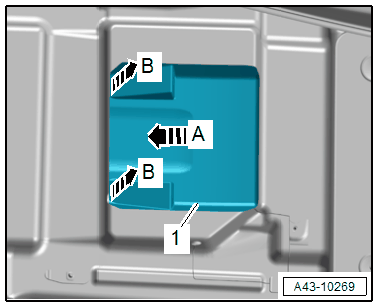

-- First remove the cover -1- upward with the Electronic Damping Control Module -J250- in direction of -B arrows- and then remove toward the rear out of the bracket in direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

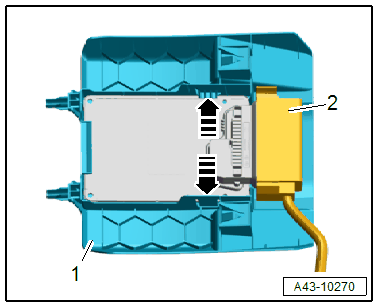

-- Unclip and remove the Electronic Damping Control Module -J250- from the bracket -1- in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.
