Windshield Wiper Motor -V-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

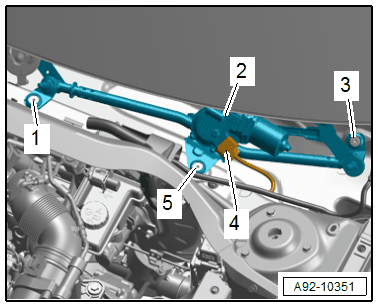

-- Remove the bolts -1, 3 and 5-.

-- Remove the windshield wiper frame -2- with the linkage and remove the windshield wiper motor from the plenum chamber.

-- Disconnect the connector -4-.
