Washer Fluid Reservoir, Removing And Installing: Removing

-- Remove the filler neck cap.

-- Remove the front fender cover. Refer to FENDER COVER, REMOVING AND INSTALLING .

-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

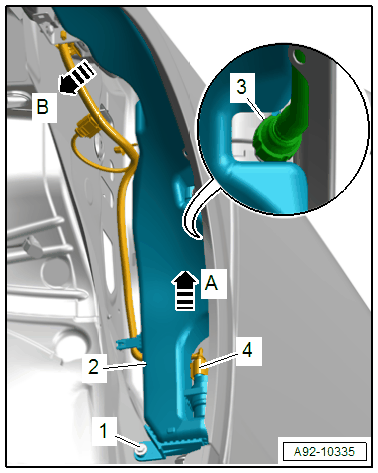

-- Disconnect the connector -4- from the Windshield Washer Pump -V5-.

Courtesy of AUDI OF AMERICA, LLC

-- Place a drip tray under the washer fluid reservoir.

-- Remove the hose -3- from the Headlamp Washer Pump -V11-.

-- Remove the bolt -1-.

-- Disengage the rear washer fluid reservoir -2- upward in direction of -arrow A- and remove it toward the front in direction of -arrow B-.

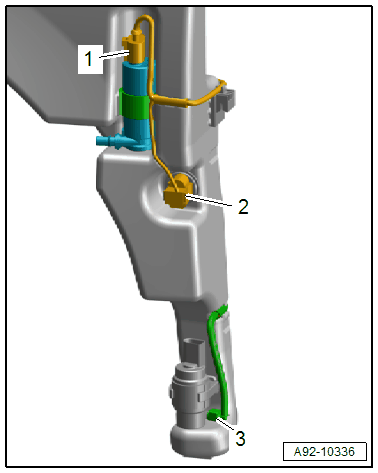

-- Disconnect the connectors:

Courtesy of AUDI OF AMERICA, LLC

1. for Headlamp Washer Pump -V11-
2. for Windshield Washer Fluid Level Sensor -G33-

-- Remove the hose -3- from the Windshield Washer Pump -V5-.

-- Free up the wiring harness.
