Spray Nozzles, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Unclipping Windshield Washer Spray Nozzle Downward From Hood

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the spray nozzle -1- for the windshield washer system from the hood in the direction of -arrow-.

-- Release the clip -3- in direction of -arrow- and remove the washer fluid hose -2- from the windshield washer system spray nozzle.

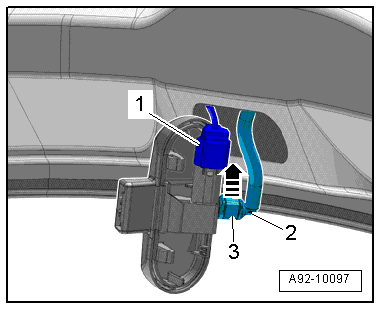

Fig 2: Releasing Securing Clip And Removing Washer Fluid Line From Windshield Washer System Spray Nozzle

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- if equipped.
