Washer Nozzles, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
Vehicles with Auxiliary Radiator:
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Continuation for All Vehicles:
-- Remove the cover for the headlamp washer system spray nozzle. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .

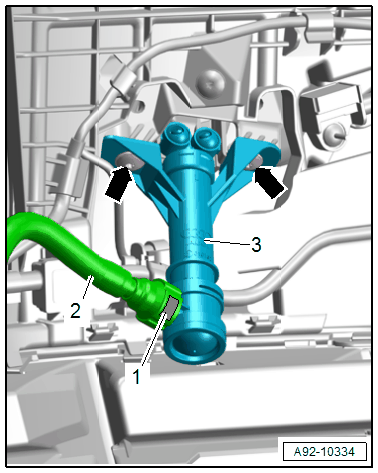

-- Remove the bolts -arrows-.
-- Remove the spray nozzle -3- toward the rear.
-- Place the drip tray under the washer nozzle.
-- Remove the washer fluid hose -2- by pressing the release buttons -1-.
-- Seal off the hose coupling with clean plugs from the :VAS6122 .
