Luggage Compartment Lamp, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal while noting the following:

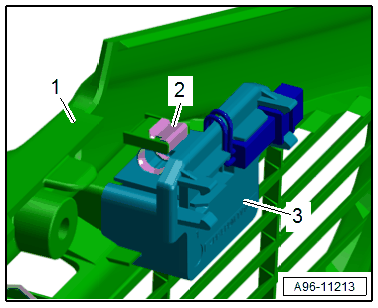

-- Insert the luggage compartment lamp -1- into the opening for the luggage compartment side trim panel.
-- Slide the cover -3- onto the luggage compartment side trim panel -1-. Make sure the clip -2- is positioned correctly while doing so.
