Driver And Passenger Side Entry Lamp -W92- / -W93-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

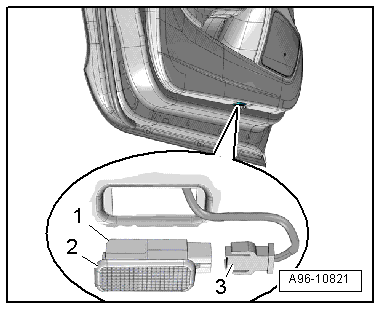

Fig 1: Driver And Passenger Side Entry Lamp -W92- / -W93-
GWWA96-10821Courtesy of AUDI OF AMERICA, LLC

-- Use a flat-head screwdriver to press in the retaining tab -1- and pry out the entry lamp -2-.

-- Disconnect the connector -3-.
