Driver And Front Passenger Door Warning Lamp -W30- / -W36-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

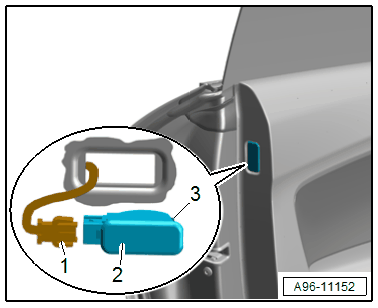

-- Press the tab -3- in using a flat-head screwdriver and pry out the door warning lamp -2-.

GWWA96-11152Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Carefully pry out the cover over the lamp in direction of -arrow-.

Fig 1: Prying Off Cover On Door Safety Lamp
GWWA96-0481Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- from the bulb socket -2- on the back of the door warning lamp.

Fig 2: Door Safety Light/Entry Light Bulb
GWWA96-0599Courtesy of AUDI OF AMERICA, LLC
