Anti-Theft Immobilizer Reader Coil, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Adjust the steering wheel downward and to the rear as far as possible. Use the entire adjustment range of the steering column adjustment for this.
-- Remove the lower steering column trim panel. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

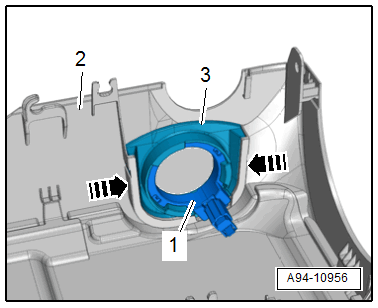

-- Release the tabs in direction of -arrows- and remove the mount -3- upward from the lower steering column trim panel -2-.
-- Remove the reader coil -1- from the mount.
