Driver Assistance Systems Front Camera, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal while noting the following:

NOTE:

The camera field of vision on the inside of the windshield must not be fogged up or dirty.

The clips must be replaced each time the front camera is removed.

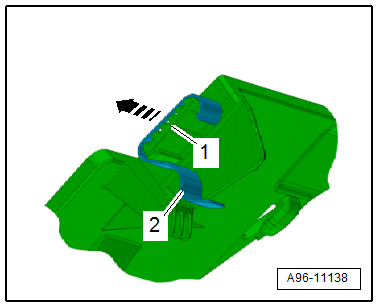

-- Remove the clip -2- in the direction of -arrow- from the mount -1- and insert a new one.

Fig 1: Removing Front Camera Retaining Clip

Courtesy of AUDI OF AMERICA, LLC

-- Clean the viewing window on the windshield with Cleaning Solution: D 009 401 04 .

-- Calibrate the driver assistance systems front camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
