Light Switch -E1-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

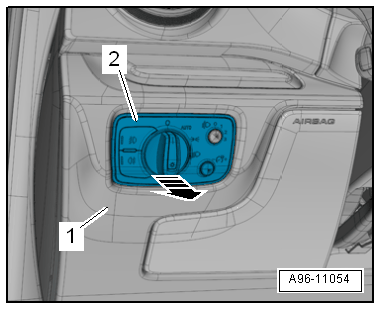

GWWA96-11054Courtesy of AUDI OF AMERICA, LLC

-- Turn the light switch to position "0".

-- Remove the light switch -2- from the driver side instrument panel cover -1- in direction of -arrow-.

NOTE:

If the light switch cannot be removed as described, remove the driver side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING . Push the light switch out of the driver side instrument panel cover from behind.

-- Disconnect the connectors.
