BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Switch Module in Instrument Panel, Center -EX22-: Removing

WARNING: This page is about a different variant/trim than selected.

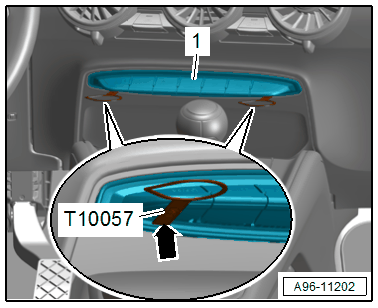

-- Insert the : T10057  into the openings -arrow- on the left and right to release the tabs.

GWWA96-11202Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector and remove the button unit -1-.
